Soldered Button, LED & Buzzer Board with Qwiic

Three pushbuttons, three WS2812B RGB LEDs and a passive buzzer on one small I2C board, with Qwiic connectors and eight selectable addresses.

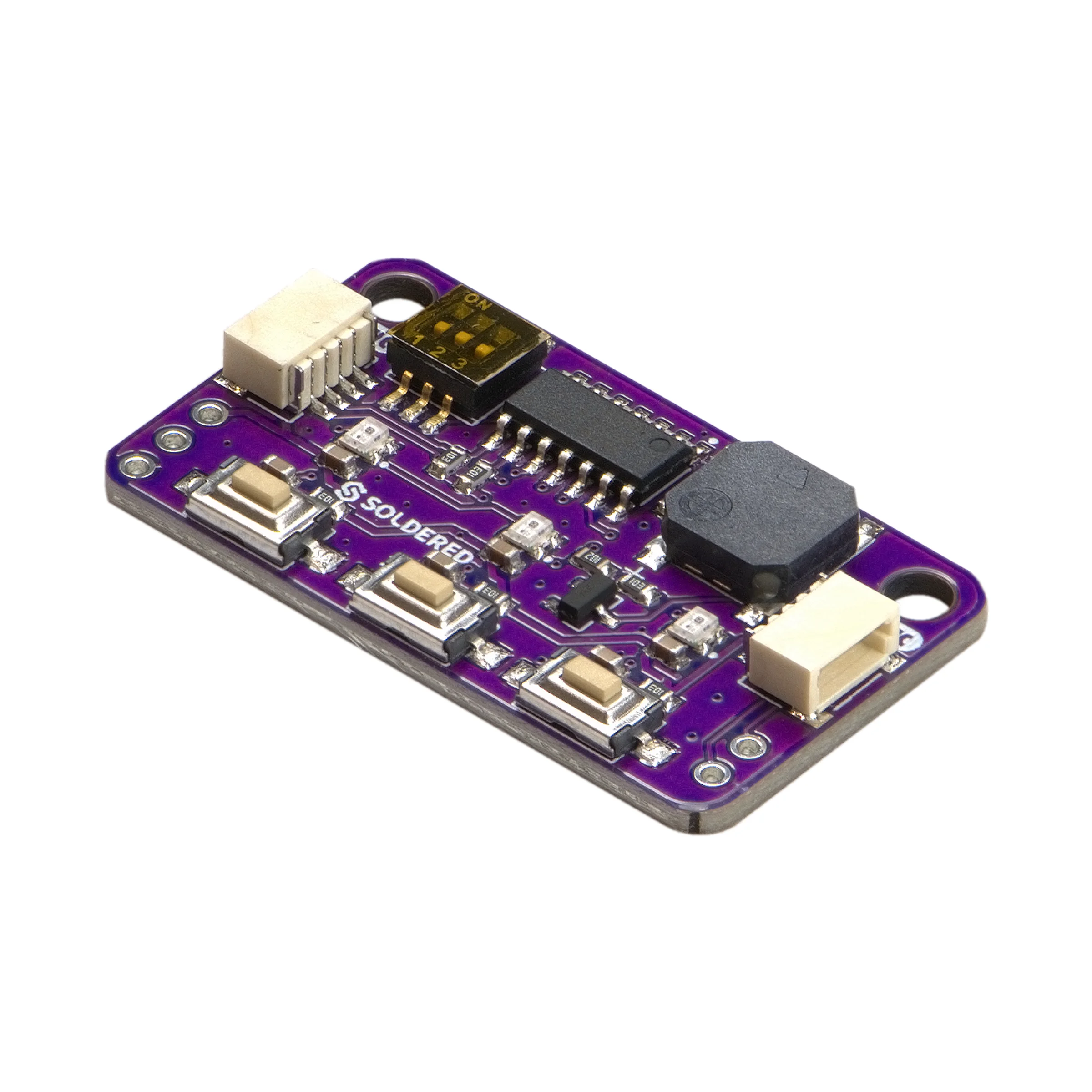

Button, LED & Buzzer Board with Qwiic seen at an angle: a purple board with an address switch, the ATtiny404, a buzzer, two Qwiic connectors, three RGB LEDs and three pushbuttons
Isometry

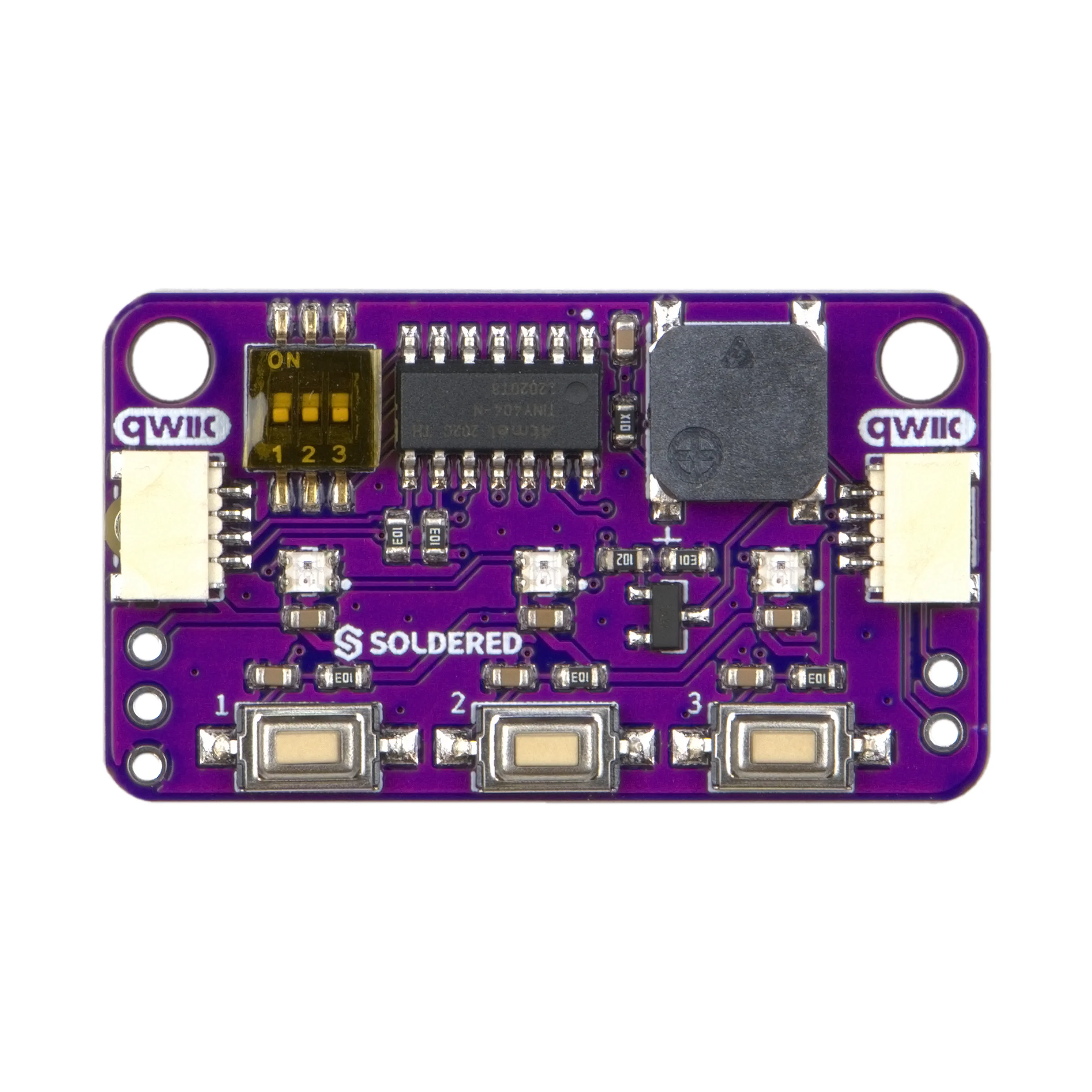

Top view of the Button, LED & Buzzer Board with Qwiic: a Qwiic connector on the left and right edges, the address switch and the buzzer along the top and three pushbuttons along the bottom edge
Top down

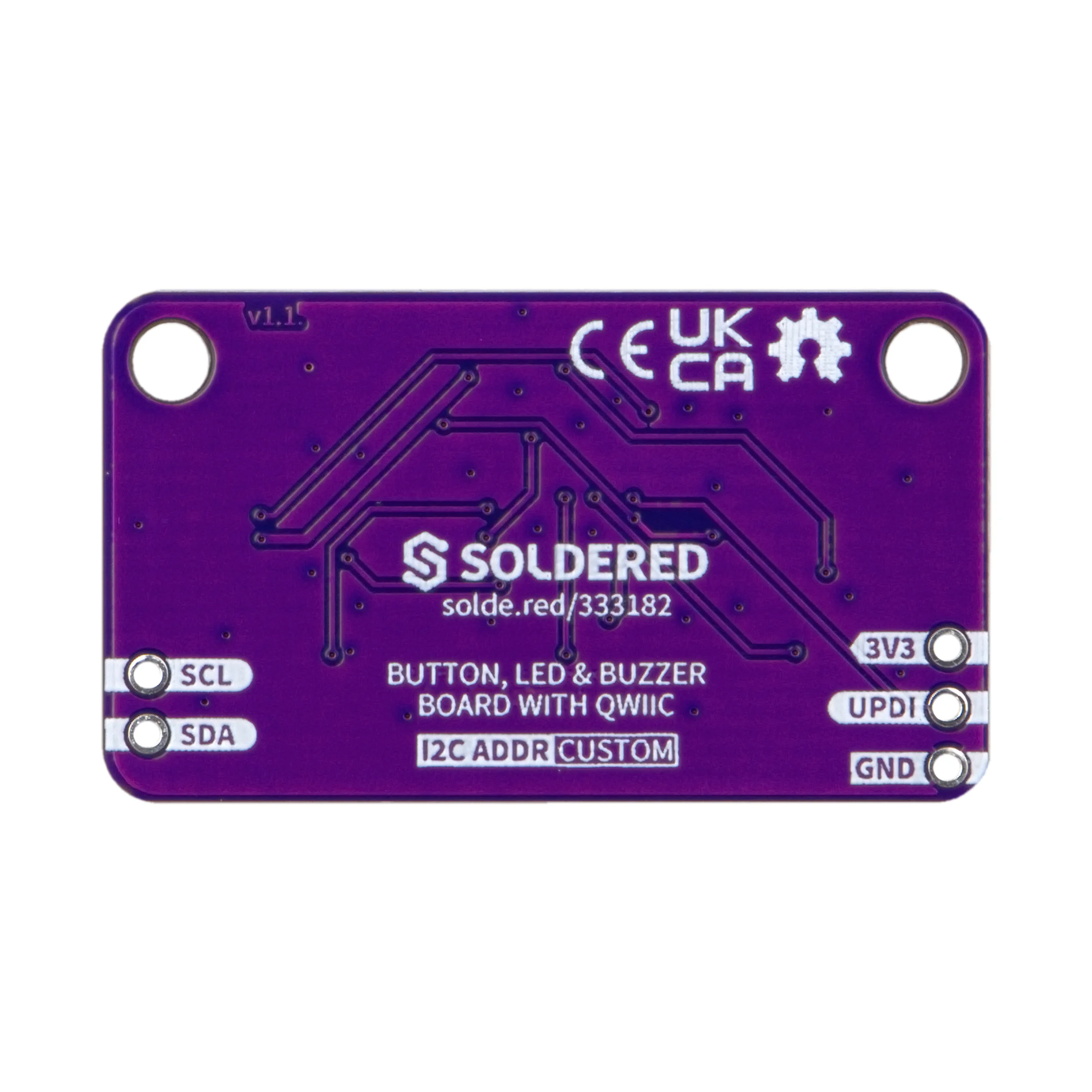

Underside of the Button, LED & Buzzer Board with Qwiic, with printed text on the purple board
Bottom up

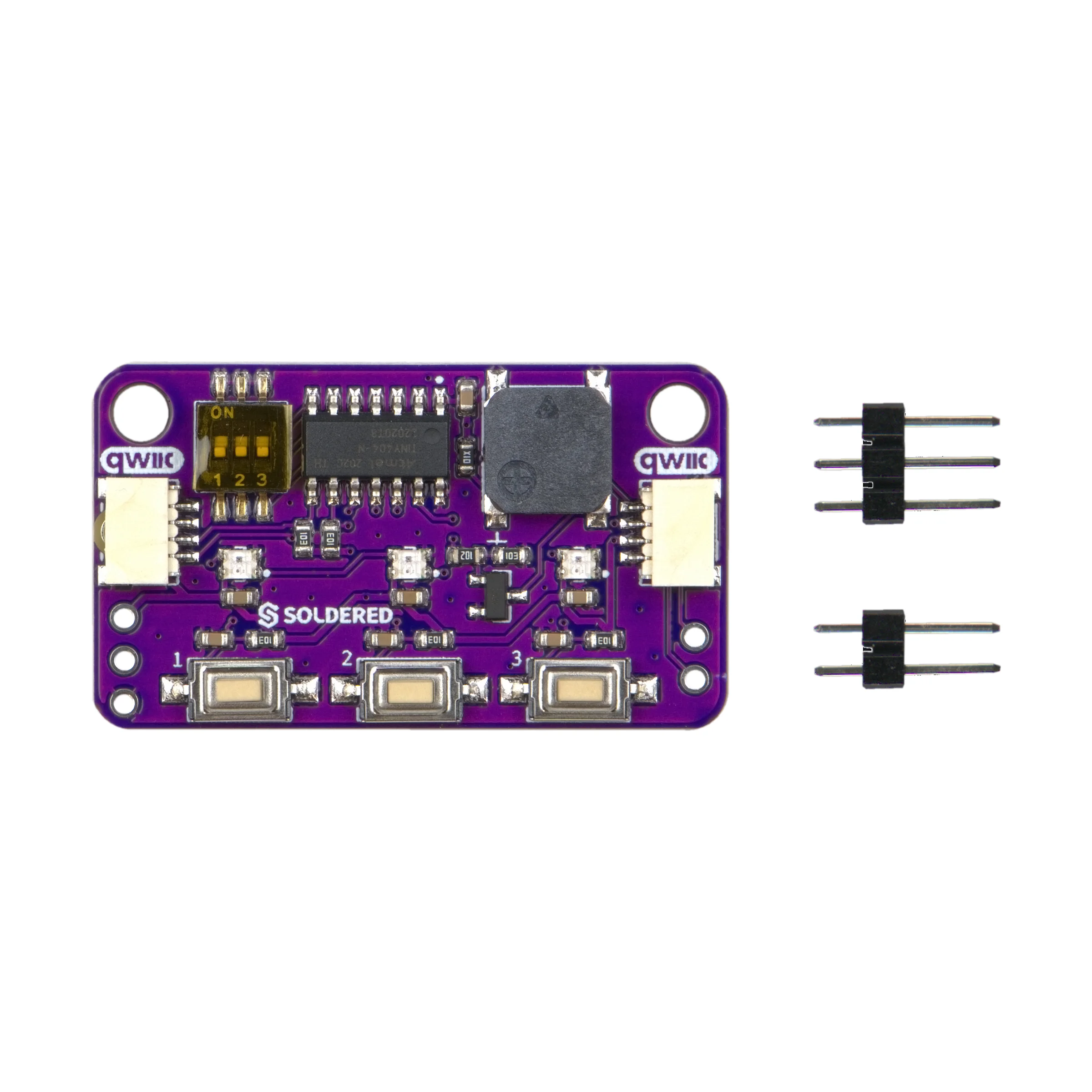

Top view of the Button, LED & Buzzer Board with Qwiic next to the two unsoldered header strips that come with it
Top down with included header pins

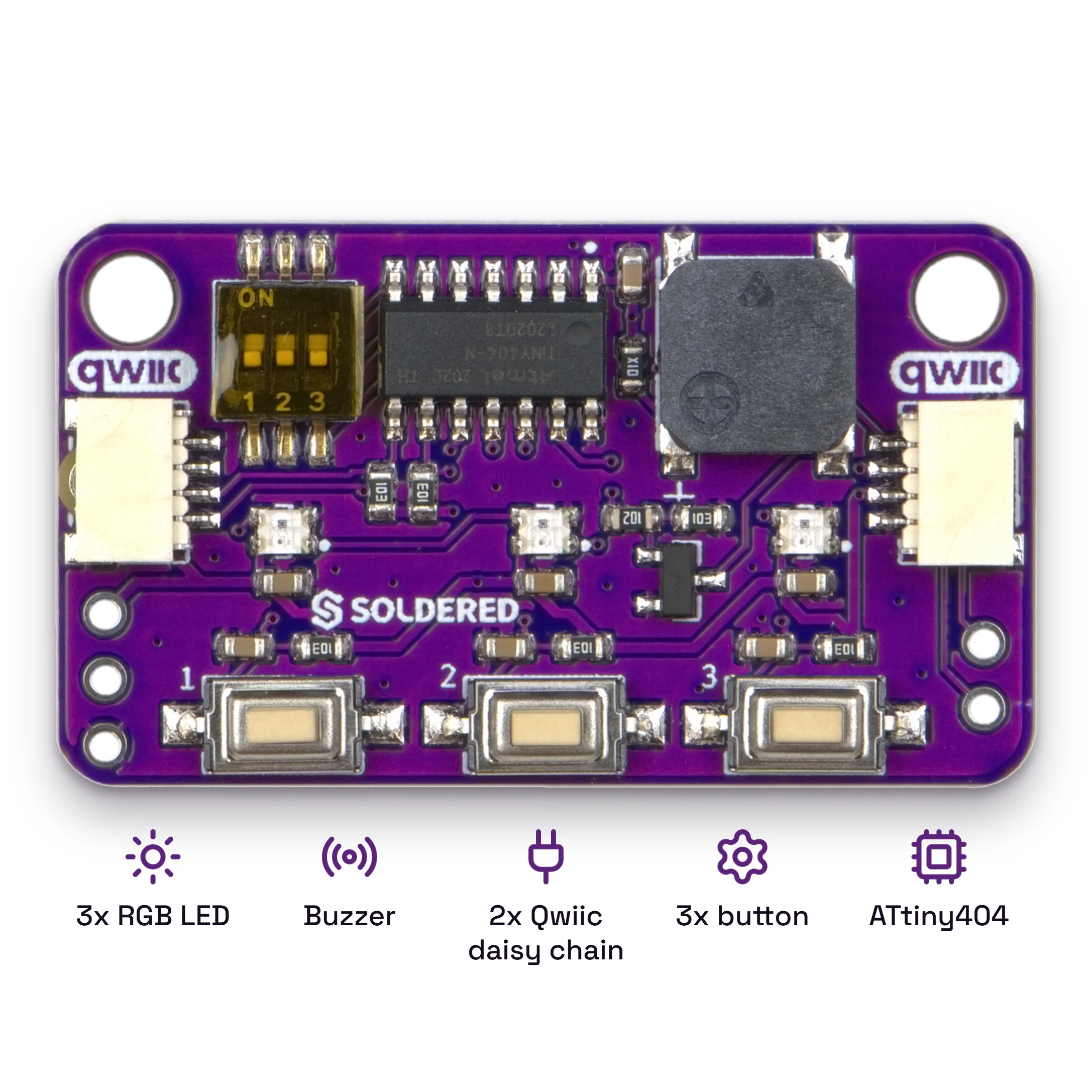

The Button, LED & Buzzer Board with Qwiic from above, with icons and short captions underneath
Marketing photo

An ATtiny404 microcontroller on the board reads the three buttons, drives the three RGB LEDs and plays the buzzer. Your controller talks to it over I2C, so it needs only the two I2C lines.

Plug it in with a Qwiic cable, no soldering needed. Your code reads which buttons are pressed, sets each LED to any colour and plays a tone on the buzzer at the frequency you choose, in Hz. Three switches on the board set the I2C address from 0x30 to 0x37, so up to eight boards can share one bus, and the second Qwiic connector passes the bus on to the next board.

This documentation is for​

Button, LED & Buzzer Board with Qwiic seen at an angle: a purple board with an address switch, the ATtiny404, a buzzer, two Qwiic connectors, three RGB LEDs and three pushbuttonsProductSoldered Button, LED & Buzzer Board with QwiicThree pushbuttons, three WS2812B RGB LEDs and a passive buzzer on one I2C board with Qwiic connectors.SKU 333182ShopBuy it on our shopThis product's page in the Soldered shop.https://soldered.com/products/soldered-button-led-buzzer-board-with-qwiicOpen the shop page

At a glance​

InterfaceI2C over Qwiic, default address 0x30
Main ICATtiny404
LEDs3 × WS2812B-2020 RGB, 8 bits per colour channel
Buttons and buzzer3 pushbuttons, 1 passive buzzer
Voltage3.3 V, supplied through Qwiic
Connectors2 × Qwiic, 2-pin SDA/SCL header, UPDI header
Dimensions38 × 22 mm
Arduino librarySoldered-Button-LED-Buzzer-Board

What's in the box​

QtyItemNotes
1Button, LED & Buzzer Board with Qwiic (main product)SKU 333182
2Header pins (unsoldered)Header pins included for all breadboard-compatible pins
