Soldered PWM & Servo Driver 16-Channel 12-bit PCA9685 breakout

This breakout drives up to 16 hobby servos or PWM-controlled outputs from a single I2C (a two-wire bus for talking to chips) connection, built around the NXP PCA9685. Each of the 16 channels has 12-bit resolution (4096 steps) and keeps its own PWM signal running once you set it, so your microcontroller does not have to hold the timing itself. A separate screw terminal powers the servos, so motor current never shares the rail with your logic supply.

Purple PCA9685 PWM and servo driver breakout board at an angle, showing the 16-channel header row along the top edge, the two-screw terminal for servo power, a Qwiic connector, and the Soldered logo on the board
Soldered PWM & Servo Driver 16-Channel 12-bit PCA9685 breakout

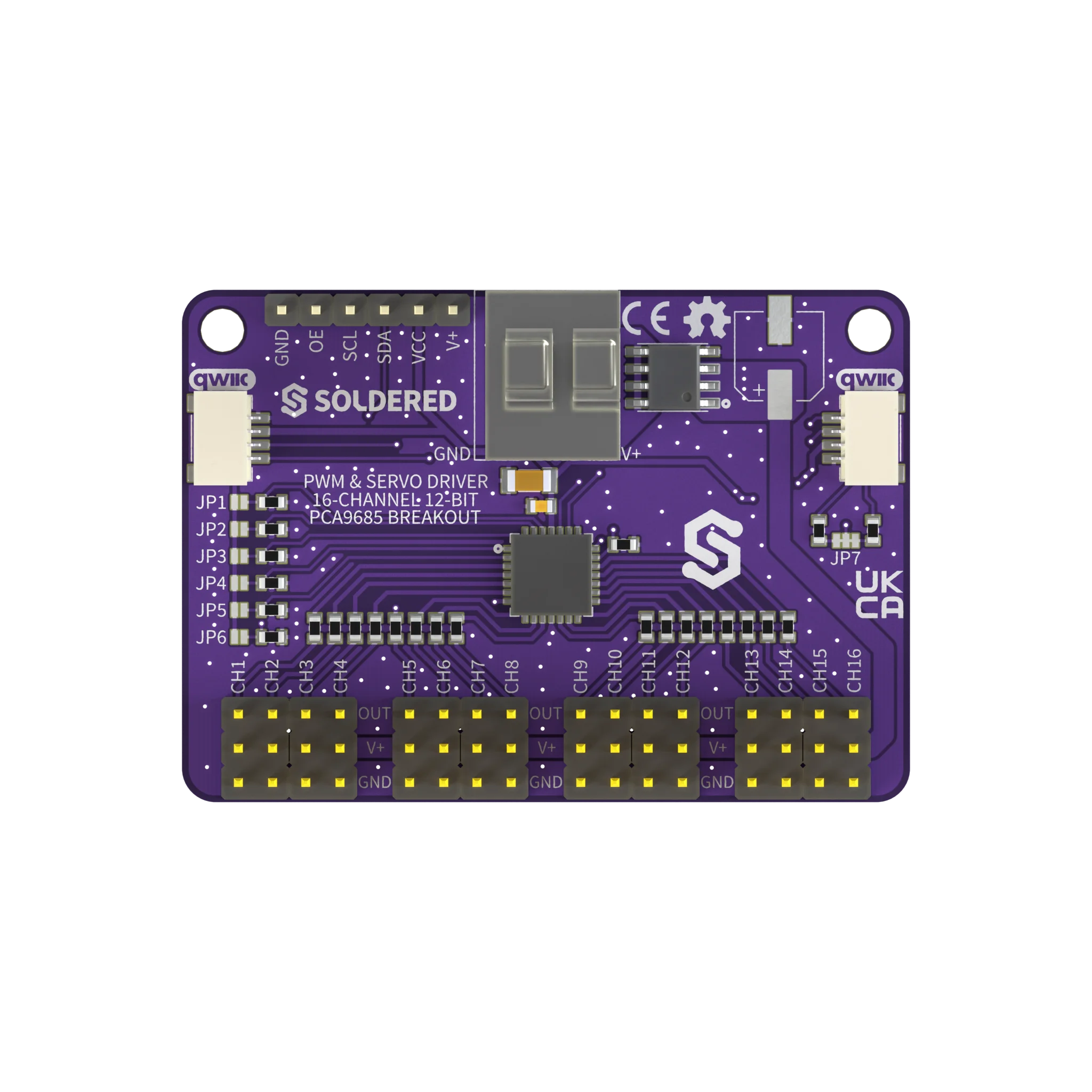

Top-down view of the same board with every silkscreen label visible: GND, OE, SCL, SDA, VCC and V+ on the 6-pin header, two Qwiic connectors, solder jumpers JP1 to JP7, the two-terminal servo power screw terminal, and channel headers CH1 to CH16 each broken out as OUT, V+ and GND
Every pin and jumper is labelled on the board

This documentation is for​

Purple PCA9685 PWM and servo driver breakout board at an angle, showing the 16-channel header row along the top edge, the two-screw terminal for servo power, a Qwiic connector, and the Soldered logo on the boardProductSoldered PWM & Servo Driver 16-Channel 12-bit PCA9685 breakoutA 16-channel, 12-bit PWM driver that runs up to 16 servos over one I2C bus, with a separate screw terminal for servo power.SKU 333191StoreBuy it on solde.redPrice, stock and every variant of this product on the Soldered store.https://www.solde.red/333191Open the product page

At a glance​

InterfaceI2C (control), PWM (16 channels)
Main ICPCA9685
Channels16, individually programmable
Resolution12-bit, 4096 steps per channel
VoltageLogic 3.3 V
Current25 mA sink / 10 mA source per channel at 5 V; 400 mA total for the package
Connectors2x Qwiic (I2C) plus a 6-pin header
Dimensions54 x 38 mm
EnvironmentsArduino, MicroPython
